某网络拓朴结构如下图所示。 在路由器 R2 上得到如下所示结果。
某网络拓朴结构如下图所示。 在路由器 R2 上得到如下所示结果。
最全题库
2022-08-02
46
问题

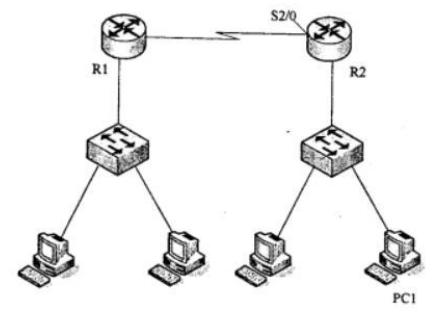

某网络拓朴结构如下图所示。 在路由器 R2 上得到如下所示结果。
R2> R 192.168.0.0/24[120/1] via 202.117.112.1, 00:00:11, Serial 2/0 C 192.168.1.0/24 is directly connected, FastEthernet 0/0 202.117.112.0/30 is subnetted, 1 subnets C 202.117.112.0 is directly connected, Serial 2/0 则 PC1 可能的 IP 地址为( )。A.192.168.0.1 B.192.168.1.1 C.202.117.112.1D.202.117.112.2
选项
A.192.168.0.1
B.192.168.1.1
C.202.117.112.1
D.202.117.112.2
答案
B
解析
因为R2上通过rip学到的192,168.0.0/24因此,这个网段根本不是PC1的网段。而从C 202.117.112.0 is directly connected, Serial 2/0可以看到,这个地址是S2/0的。而C 192.168.1.0/24 is directly connected, FastEthernet 0/0 是直连的,因此这个网段就是PC1所在网段。
转载请注明原文地址:https://tihaiku.com/congyezige/2403584.html
本试题收录于:
中级 网络工程师题库软件水平考试初中高级分类
中级 网络工程师
软件水平考试初中高级
